Drive System Part 2: The banana - Drive harness

Drive System Part 2

After completing the gluing and waiting for it to dry (days)

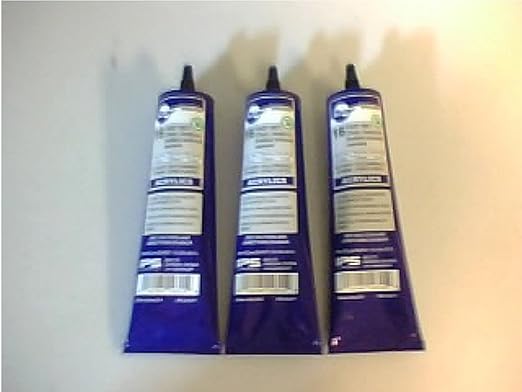

NOTE: the glue that was used: Weld-on 16 which dries not as fast and allows time to set the parts.

https://www.amazon.com/gp/product/B00MBP2VAO/ref=ox_sc_act_title_6?ie=UTF8&psc=1&smid=A1QO0V8LDU7BFX

The drive is simply an auto windshield wiper motor... after watching James' video several dozen times I picked this one which resembled it best...

https://www.amazon.com/gp/product/B00TIDDJWG/ref=ox_sc_act_title_2?ie=UTF8&psc=1&smid=AX96KWIRXDDJ7

The drive itself fit the harness and although didn't match the color schema of James' I had my father who is a electrical engineer figure out which wires were the hot wires.


I started by fastening the center harness... but backed it out when I determined the only way to connect the outer wheel connectors was with it off...
